polyester geogrid

Polyester geogrid has a variety of characteristics such as high tensile strength, low elongation, corrosion resistance, aging resistance, strong bite force with base material, light weight, and drainage effect.Various high-grade roads and railways have soft subgrade enhancements, and different soil materials for each road; reinforcement, isolation, and reinforcement of soft soil foundations in dams and river channels in water conservancy projects to enhance their protection capabilities and improve the bearing capacity and stability of the foundation. It is used for the reinforcement of embankment slopes and retaining walls to enhance the overall strength.
Contact Us Check our contact information or send an email to:geogrid@taroadgeo.com
We will contact you within 24 hours, thank you very much.

Online Inquiry Whatsapp: +8615610411880

Product Content

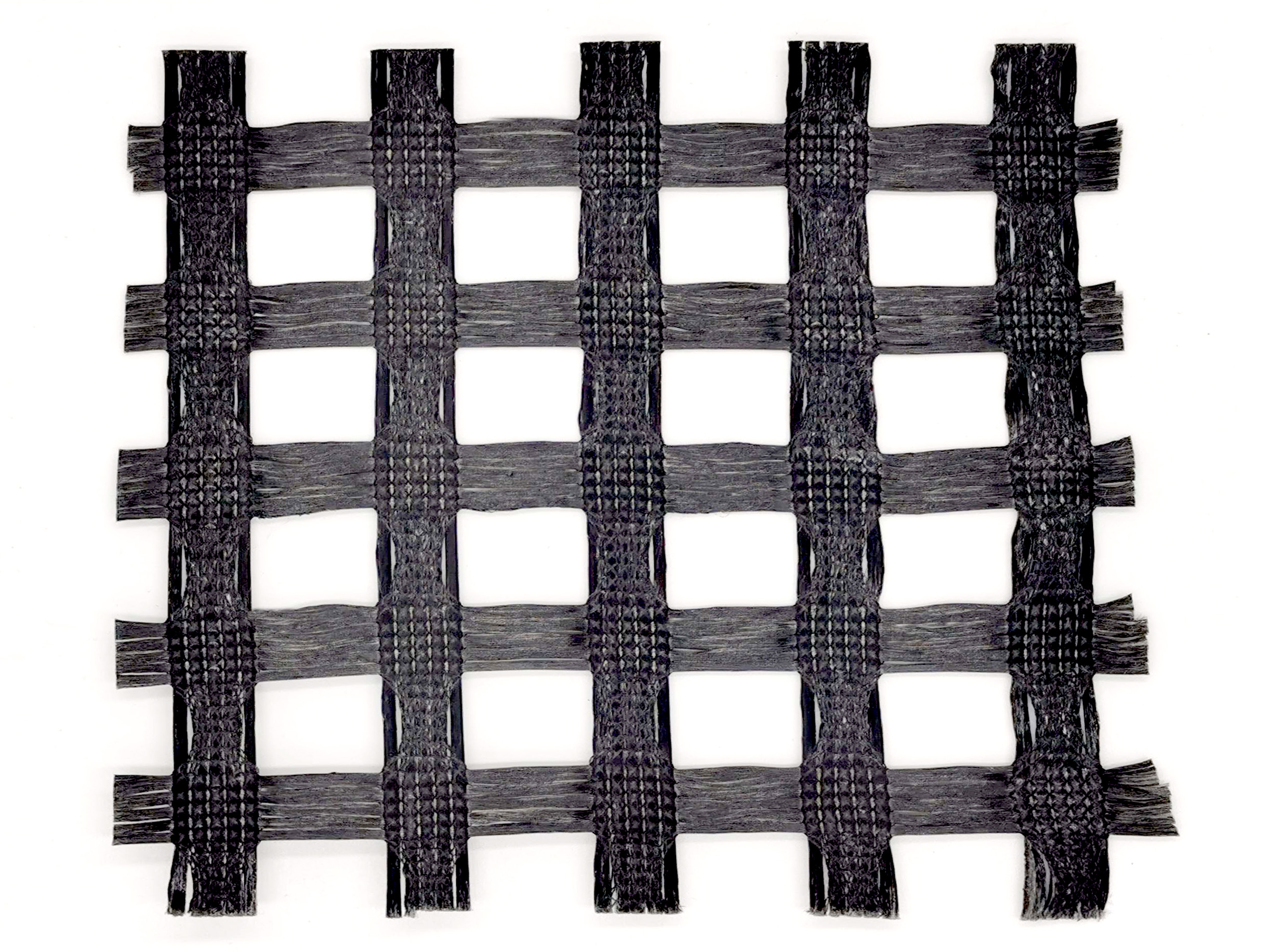

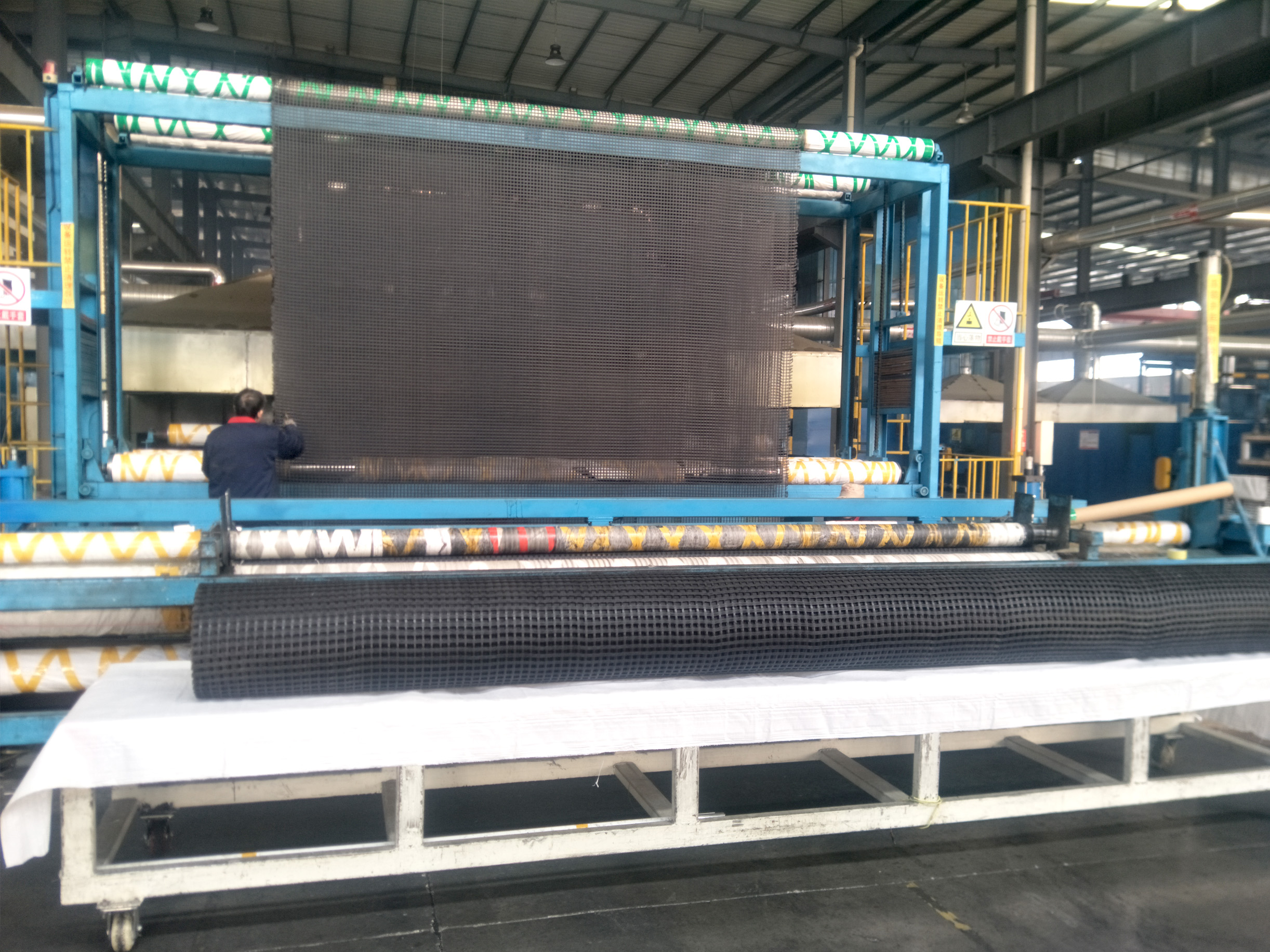

Taian Road polyester geogrid applies chemical fiber with extreme strong elasticity modulus,make it into grid loom stare through oriented warp knitting..

performance：high tensile strength;high tear-resistant;strong combination with gravel and soil

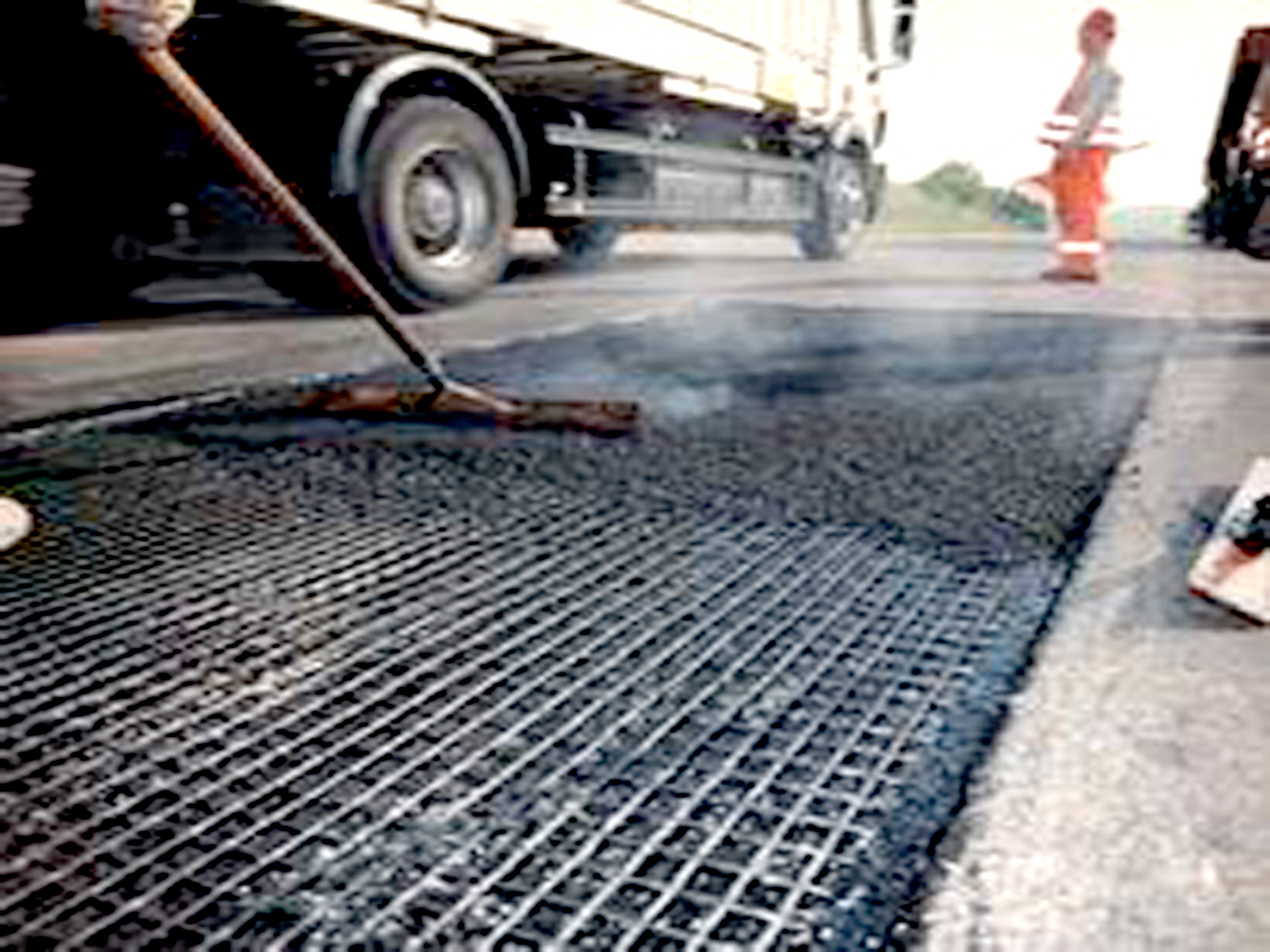

Application: Mainly applied in highway, railway, slope protecting projects etc.

Item		GSJ2525	GSJ5050	GSJ8080	GSJ100100	GSJ120120	GSJ150150	GSJ200200	GSJ250250	GSJ300300
Tensile strength ≥(kN/m)	Weft	25	50	80	100	120	150	200	250	300
Tensile strength ≥(kN/m)	Warp	25	50	80	100	120	150	200	250	300
Elongation ≤( %)		13or10
Mesh Size（mm）		25.4×25.4
