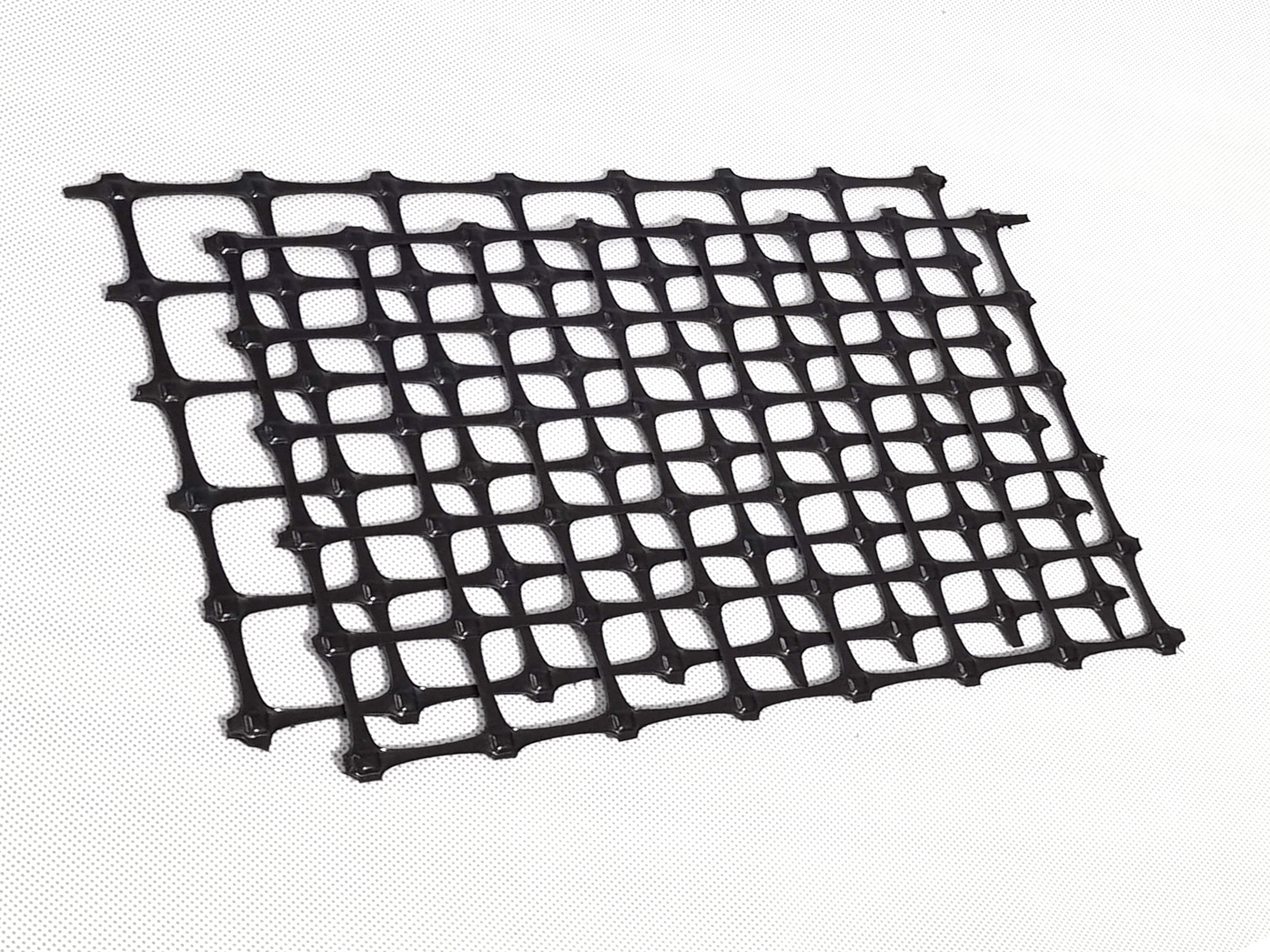

Biaxial Geogrid

The Taian Road biaxial geogrid is made of high molecular polymer through the process of extrusion, forming, and punching, and then stretched longitudinally and transversely.The material has great tensile strength in both longitudinal and transverse directions. This structure can also provide an ideal interlocking system for more effective force bearing and diffusion in the soil, which is suitable for large-area permanent load-bearing Foundation reinforcement.In the manufacture of the biaxail plastic geogrid, the polymers of the polymer will be rearranged and oriented during the heating and extension process, which strengthens the bonding force between the molecular chains and achieves the purpose of improving its strength.If anti-aging materials such as carbon black are added to the geogrid, it can make it have better durability such as acid resistance, alkali resistance, corrosion resistance and aging resistance.
Contact Us Check our contact information or send an email to:geogrid@taroadgeo.com
We will contact you within 24 hours, thank you very much.
biaxial geogrid

Product Content

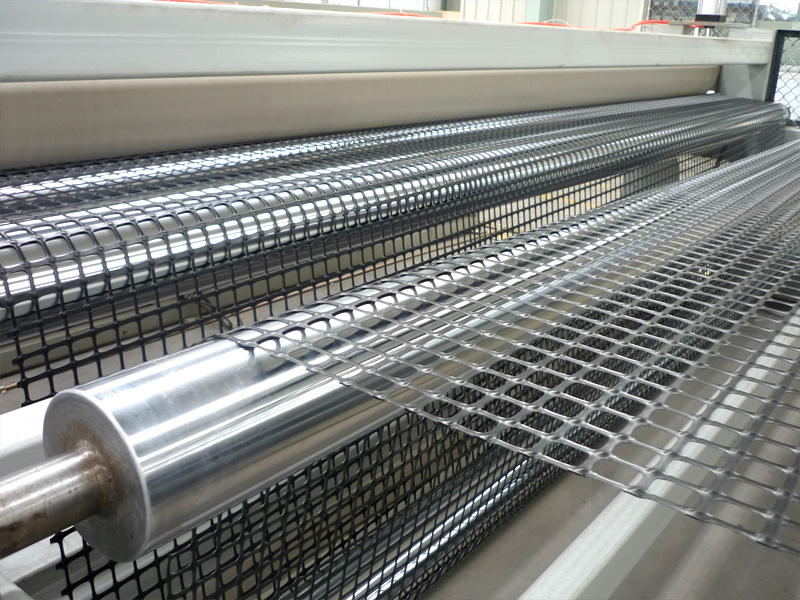

Taian Road biaxial geogrid is manufactured from polypropylene. It is produced through the process of extruding, punching, heating, longitudinal stretching and transverse stretching.
Performance:High tensile strength at both longitudinal and transverse direction.
Benefits:Improving bearing capacity of foundation;Preventing cracking and subsiding;Convenient to construct, reducing cost and maintaining expense
Application: Port Reinforcement;Road Reinforcement;Expressway Reinforcement;Railway Reinforcement;Airport Reinforcement;Sea Reclamation Project;Landfill Reinforcement;Irrigation Project
Item
TGSG15-15
TGSG20-20
TGSG25-25
TGSG30-30
TGSG35-35
TGSG40-40
TGSG45-45
TGSG50-50
MD-Tensile Strength≥(kN/m)
15
20
25
30
35
40
45
50
TD-Tensile Strength≥(kN/m)
15
20
25
30
35
40
45
50
MD-Nominal Elongation≤(%)
15
TD-Nominal Elongation≤(%)
13
MD-Tensile Strength at 2% Strain≥(kN/m)
5
7
9
10.5
12
14
16
17.5
TD-Tensile Strength at 2% Strain ≥(kN/m)
5
7
9
10.5
12
14
16
17.5
MD-Tensile Strength at 5% Strain≥(kN/m)
7
14
17
21
24
28
32
35
TD-Tensile Strength at 5% Strain≥(kN/m)
7
14
17
21
24
28
32
35
