Geocells are engineered for protection and stabilization applications. They are often used to help
improve the performance of
standard construction materials and erosion-control treatments.

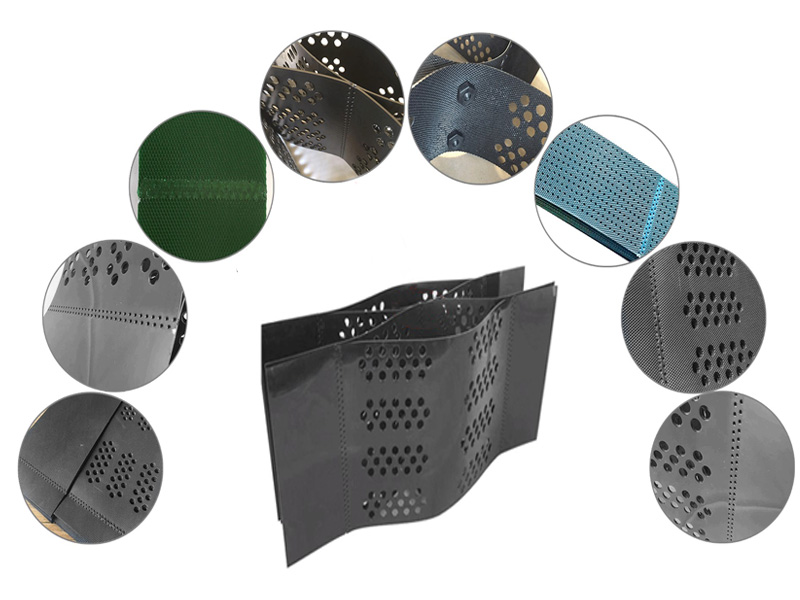

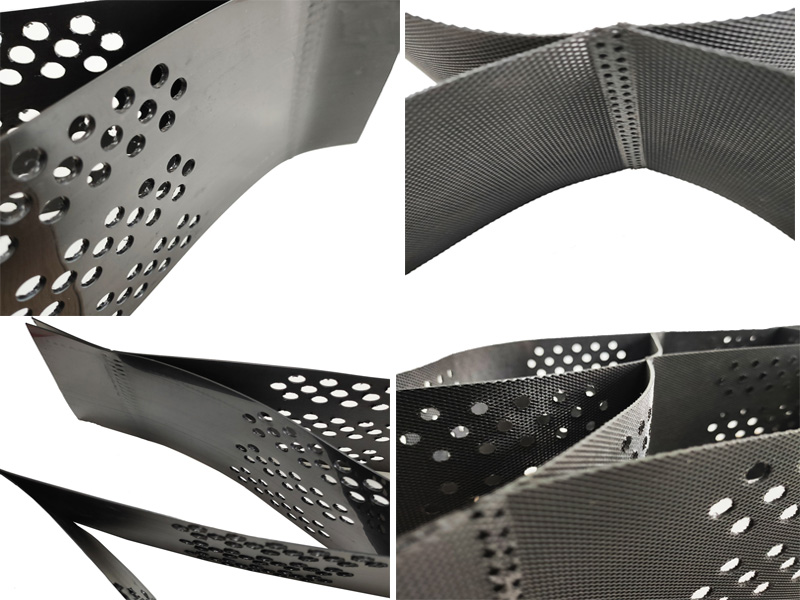

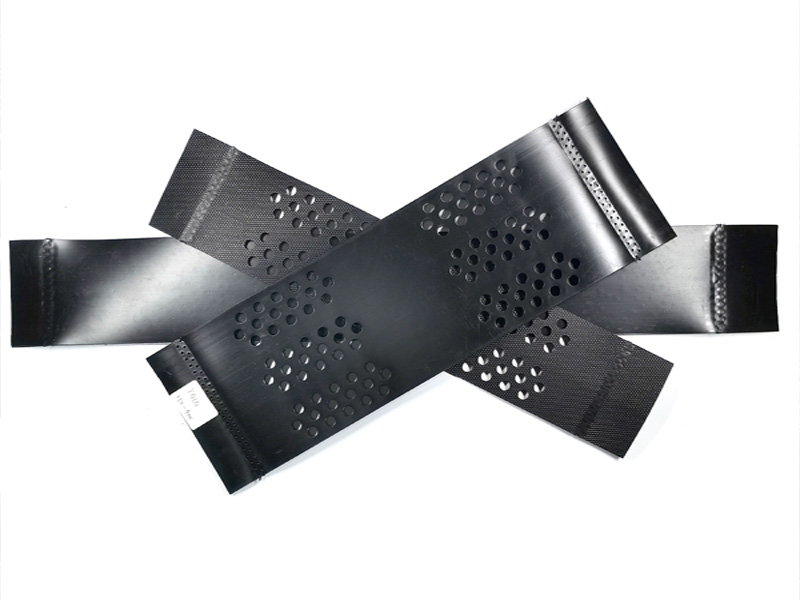

Geocell products are three-dimensional, expandable panels made from high-density polyethylene
(HDPE), polyester or another polymer material.

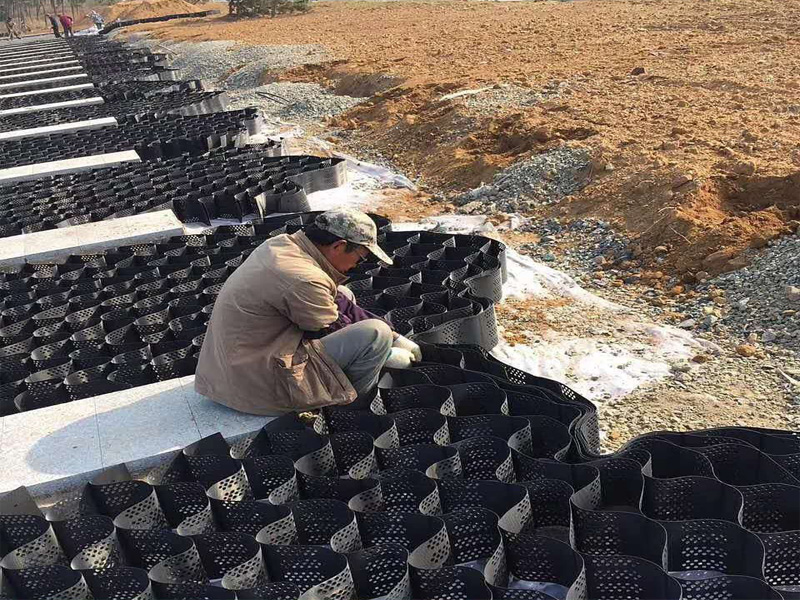

When expanded during installation, the interconnected strips form the walls of a flexible,
three-dimensional cellular structure into which specified infill materials are placed and compacted.
This creates a free-draining system
that holds infill materials in place and prevents mass movements by providing confinement through
tensile reinforcement.
Cellular confinement systems improve the structural and functional behavior of soils and aggregate
infill
materials.
Contact Us Check our contact
information or send an email to:geogrid@taroadgeo.com
We will contact you within 24 hours, thank you very much.
Product Content
Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by
reinforcing the soil in the subgrade-base interface or within the base course. The effective load
distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential
settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while
reducing the amount of aggregate material required to extend the service life of roads.
Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of
poorly graded inferior material for infill as well as reducing the structural support layer
thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible
pavements, including: roads, railway substructure and ballast confinement; working platforms in intermodal
ports; airport runways.
Slope Pretection
The three-dimensional lateral confinement of Cellular Confinement Systems along with anchoring techniques
ensures the long-term stability of slopes using vegetated topsoil, aggregate or concrete surfacing
Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either
gravity or reinforced
walls) for steep faces, walls and irregular topography
Performance：With high tensile strength and tensile modulus.Low creep deformation.
Benefits：Improving bearing capacity of retaining wall or dam,Extending the project life,Shortening
construction period, reducing cost and maintaining expense
Application:
1. Used for all kinds of road building, driveways, soil stabilization and embankment
stabilization
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed,
construction speed, good performance and greatly reduce the project cost.
Product |
Expanded Cell Size (width×length) mm |
Expanded Panel Size (width×length)
m |
Expanded Panel Area
m2 |
GC0735 |
259 X 224 |
2.56 X 6.52 |
16.7 ±1% |
GC0744 |
320 X 287 |
2.56 X 8.35 |
21.4±1% |
GC0771 |
508 X 475 |
2.56 X 13.72 |
35.12 ±1% |
GC1035 |
259 X 224 |
2.56 X 6.52 |
16.7 ±1% |
GC1044 |
320 X 287 |
2.56 X 8.35 |
21.4±1% |
GC1071 |
508 X 475 |
2.56 X 13.72 |
35.12 ±1% |
GC1535 |
259 X 224 |
2.56 X 6.52 |
16.7 ±1% |
GC1544 |
320 X 287 |
2.56 X 8.35 |
21.4±1% |
GC1571 |
508 X 475 |
2.56 X 13.72 |
35.12 ±1% |
GC2035 |
259 X 224 |
2.56 X 6.52 |
16.7 ±1% |
GC2044 |
320 X 287 |
2.56 X 8.35 |
21.4±1% |
GC2071 |
508 X 475 |
2.56 X 13.72 |
35.12 ±1% |
|
| |
|
