Drainage Board

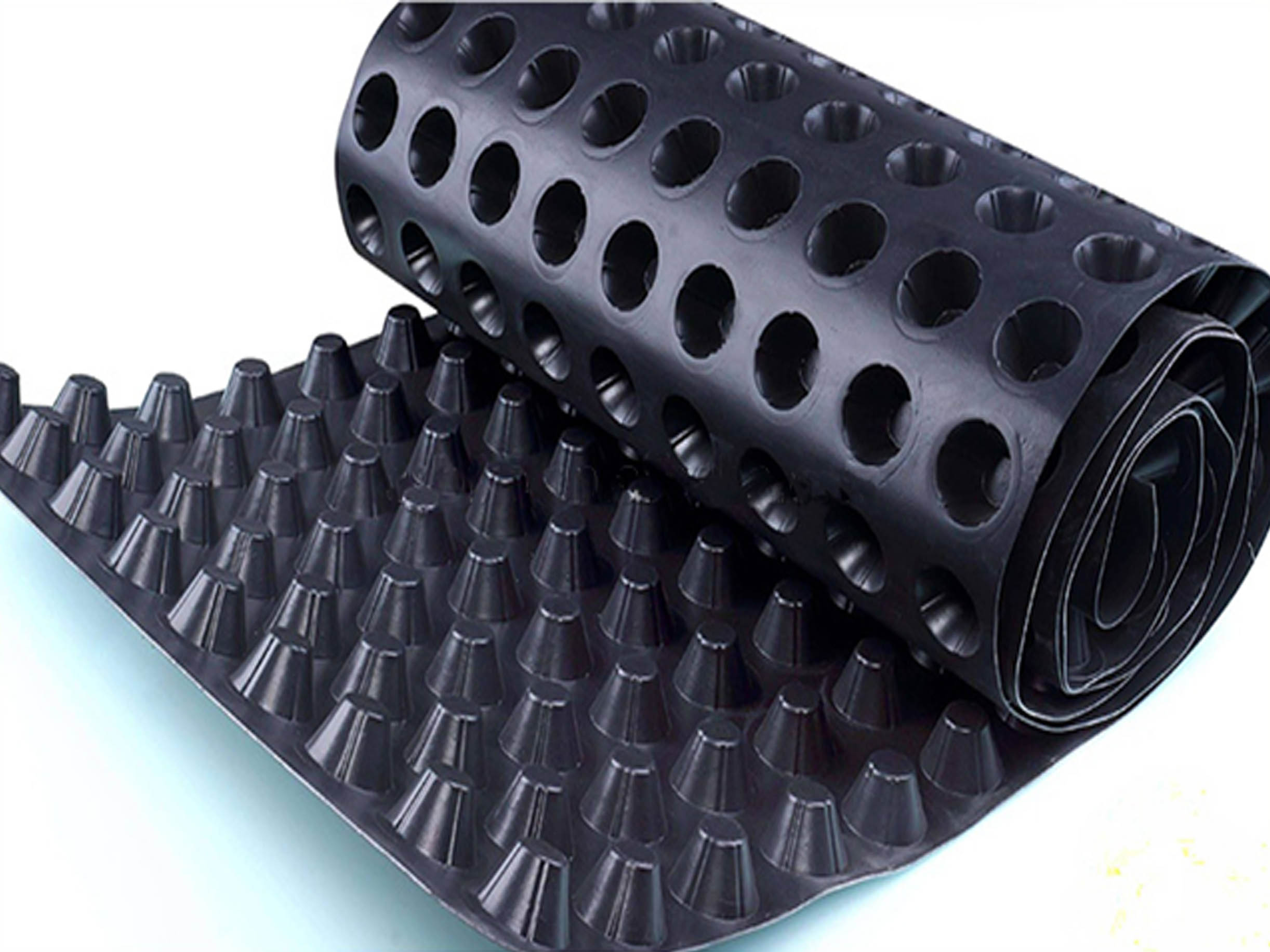

Taian Road dimple Drainage board is made by 100% pure HDPE, the use of foundation or blow molding method to produce high density polyethylene (HDPE) geomembrane, pressed on geomembrane pressure after the special craft the closed swelled the frustum of a cone shape, having a three-dimensional space and some support stiffness, liquid, gas can flow excreted within its plate.
Contact Us Check our contact information or send an email to:geogrid@taroadgeo.com
We will contact you within 24 hours, thank you very much.

Product Content

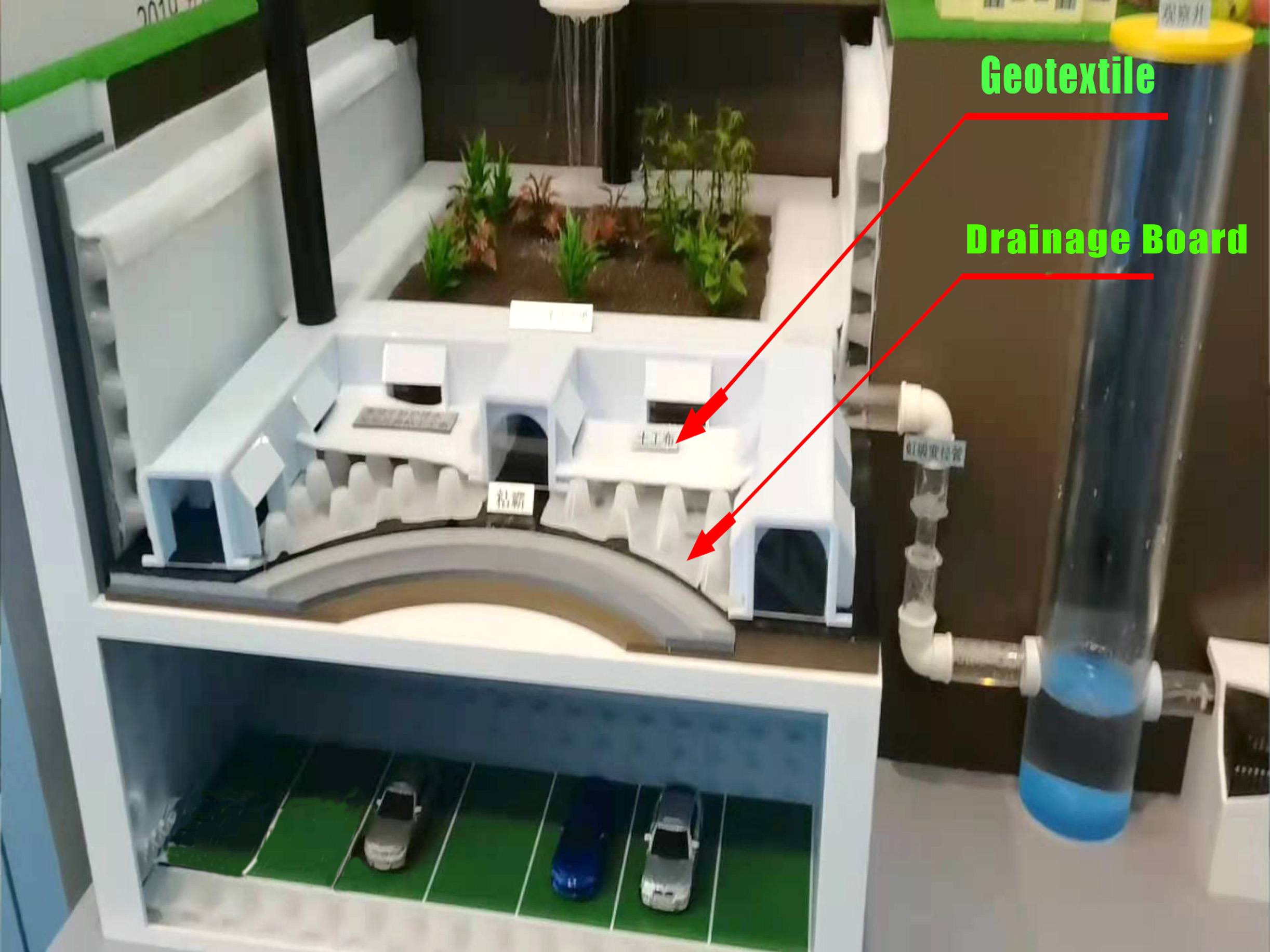

Taian Road(shandong road) drainage board is a latent many functions materials, the use of this plate can be easily constructed out of the overhead layer, using overhead layer formed drainage, exhaust passage, at the same time to use the overhead layer reaches low noise, vibration isolation function; drainage drain board water permeability in the field of civil construction can be widely used in the overhead layer of roofing systems, roof planting, drainage protection building basement waterproofing system, and interior floor insulation moisture protection, road and rail tunnel drainage water etc. 100% pure HDPE + Advanced equiment + 24 hours production + standard exporting package We produce dimple drainage board in 2~3m width, length as your request Also produce composited dimple drainage board with geotextile by heating.
Application:
1. Landscape engineering, garage top greening, roof garden, football field, golf course, beach project.
2. Municipal engineering, road base, subway, tunnel, landfill.
3. Construction engineering, upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation.Traffic engineering, highway, railway basement, dam etc
1
Material
100% High-Density Polyethylene
2
Width
1M, 2M, 3M, 4M
3
Length
50M or following your requirements
4
Weight
(g/m3)
1100g
1200g
1400g
1500g
1600g
1800g
2400g
5
Color
White, Green, Black, Blue
6
Dimple Height
(mm)
10
12
16
20
25
30
40
7
Average Board Thickness
(mm)
0.8
0.9
1.0
1.1
1.1
1.2
1.5
8
Tensile Strength
(N/100mm)
350
9
Anti pression Strength
(kpa)
300
10
Elongation Rate
(%)
≥80
11
Flow Rate
(cm3.s)
≥10
≥10
≥15
≥15
≥20
≥20
≥25
12
Puncture Strength
(N)
≥350
