3D Geomat

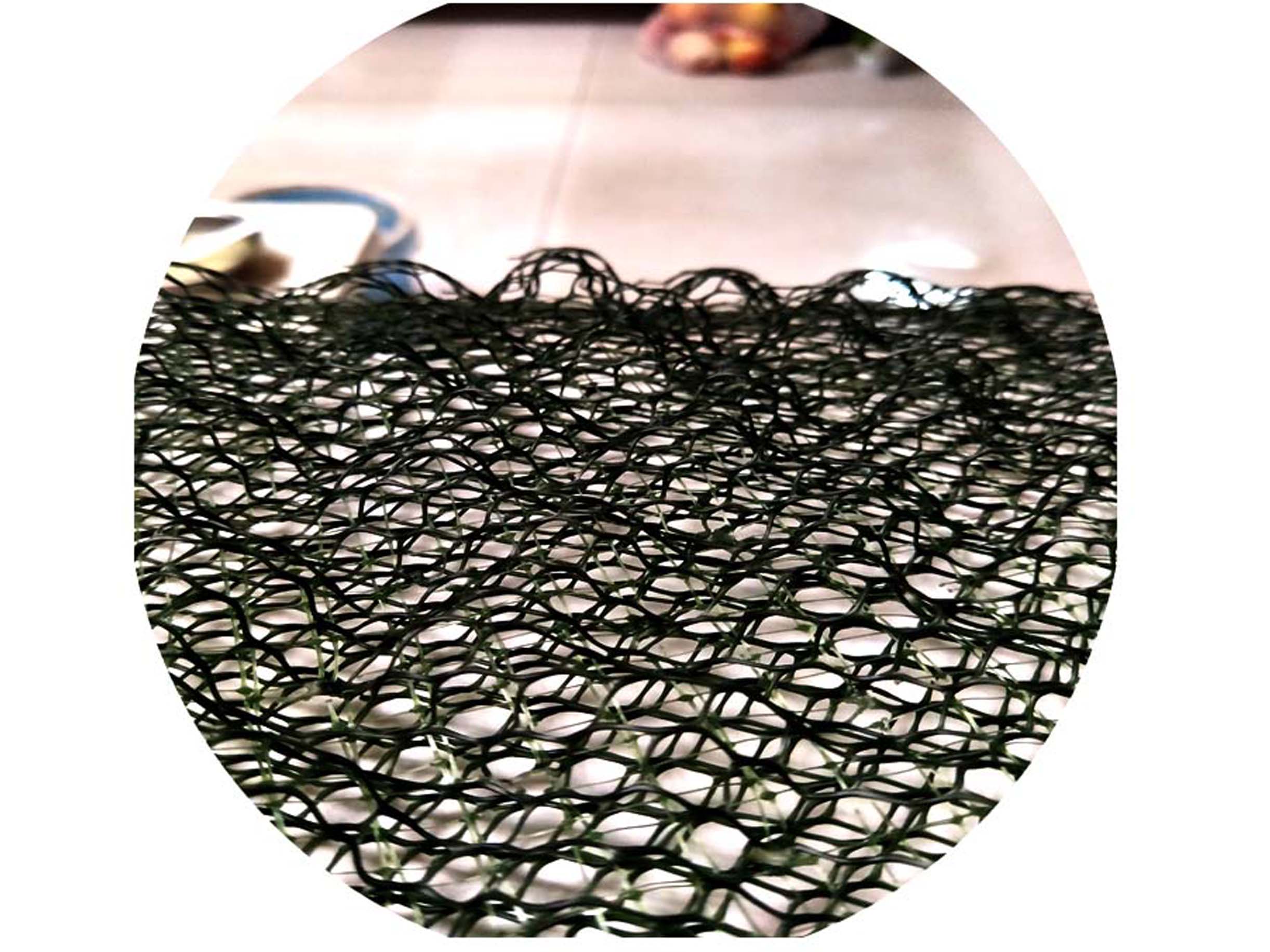

Geomat is a new-typed seed planting material with tridimensional
structure, which can effectively prevent the soil being washed away, increase the area of the
virescence, improve the environment.
It is a kind of 3D structural geosynthetic , which is applied to keep the water and land, increase
the greening area, and improve the environment.
3D geomat can be used in the soft soil stabilization, base
reinforcement, embankments over soft soils, seacoast slope protection and reservoir bottom
reinforcement, etc
It prevents the slope rock from falling down, which avoids the hurt to the human beings and the
vehicle on the road; It prevents the road dregs packed by geonet from being washed away ,avoids the
roadbed distortion and improves the stability of the roadbed; laying the geonet reinforces the road
surface ,avoids development of the reflection crack. As reinforcing material of filling soil in
retaining walls, it disperses the earth body stress and restricts the side-displacement. The stone
cage, made of geonet, can prevent erosion ,collapsing and lost of water and soil when being used in
dyke and rock slope protetion.
Contact Us Check our contact
information or send an email to:info@taroadgeo.com
We will contact you within 24 hours, thank you very much.
Product Content
Taian Road(Shandong Road) 3D Geomat is a new type of civil engineering material, belonging to the rose body material in
the field of new material technology repeated in various materials in the national high tech product
catalog. It's a kind of three-dimensional network like towel gourd net mat for grass planting and soil
consolidation. It's loose and flexible in texture, with 90% of the space for filling soil, gravel and fine
stone. The plant roots can pass through it, and grow comfortably, orderly and evenly.

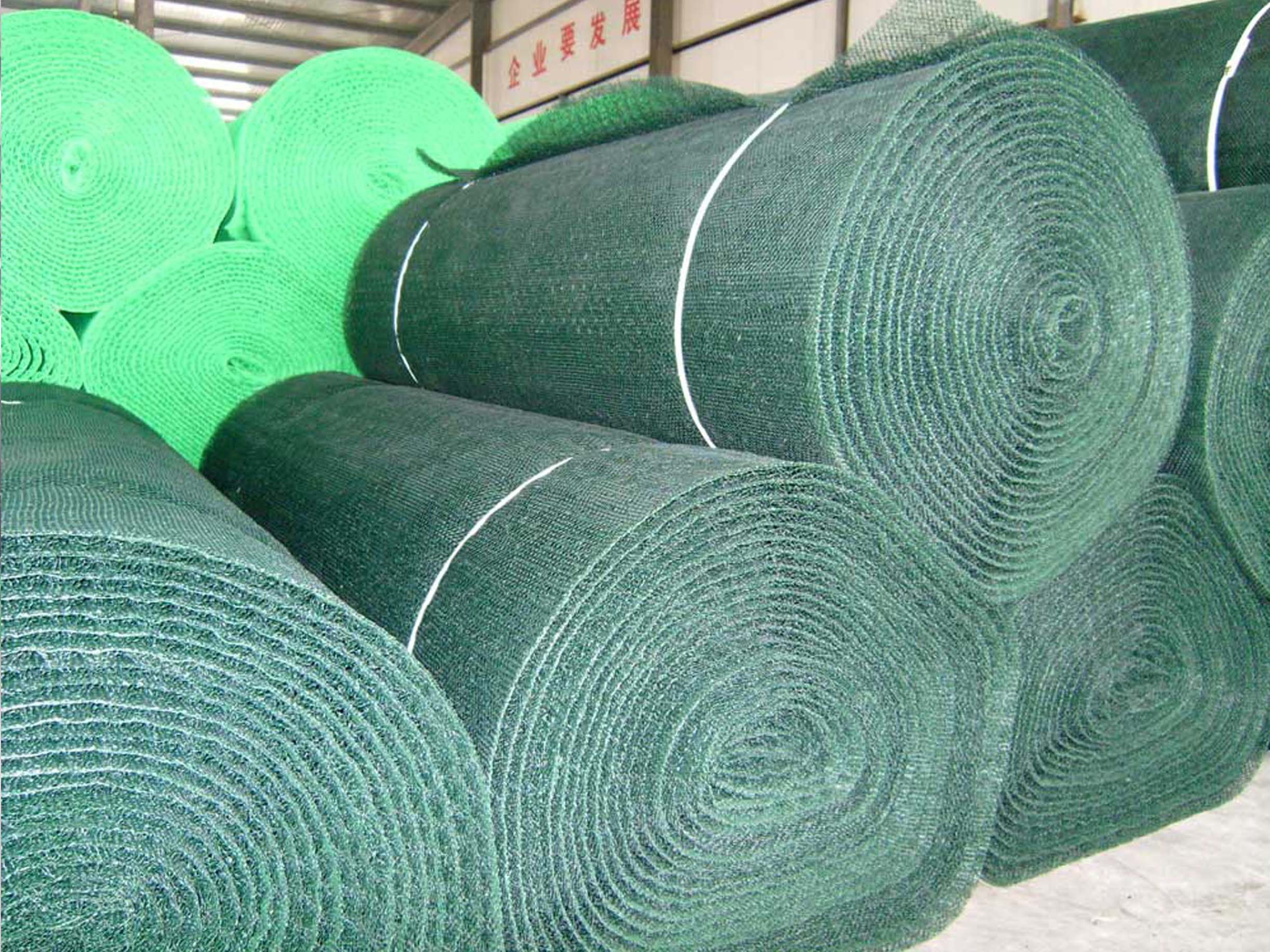

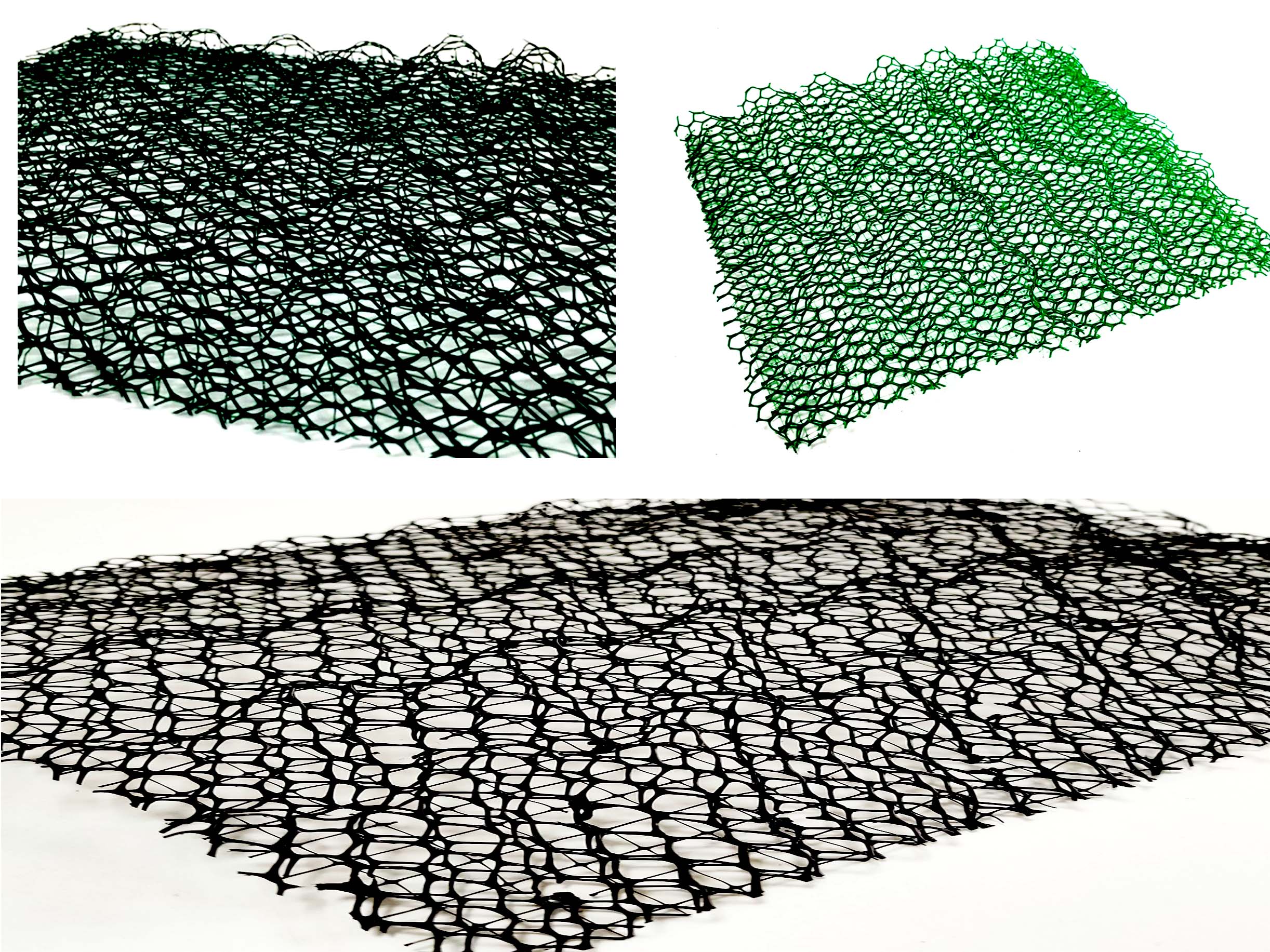

The geomat has three colors: dark green Erosion control mat; green Erosion control mat; black Erosion
control mat
Application:
1. Anti-aging, corrosion resistance
2. Highway and railway subgrade: effectively distribute load, improve its bearing capacity and stability
and prolong service life
3. As layer of highway slope so that geonet can prevent landslide and protect water and soil, and beautify
the environment
4. In reservoir and rive dykes to effectively prevent landslide; in the coastal engineering because of its
soft good toughness, corrosion strong characteristic to buffer wave swept and corrosion
|
Item
|
EM2
|
EM3
|
EM4
|
EM5
|
GNE/3D/9.0
|
|
Mass per unit area≥（g/m2）
|
220
|
260
|
350
|
430
|
280
|
|
Thickness≥（mm）
|
10
|
12
|
14
|
16
|
16
|
|
Width≥（m）
|
2.00+0.1
|
|
Length≥（m）
|
300+1
|
|
Longitudinal tensile strength≥（kN/m）
|
0.8
|
1.4
|
2.0
|
3.2
|
9.0
|
|
Transverse tensile strength≥（kN/m）
|
0.8
|
1.4
|
2.0
|
3.2
|
9.0
|
|
Note
|
The special spec or size can be manufactured according to the demands of the
contract.
|
