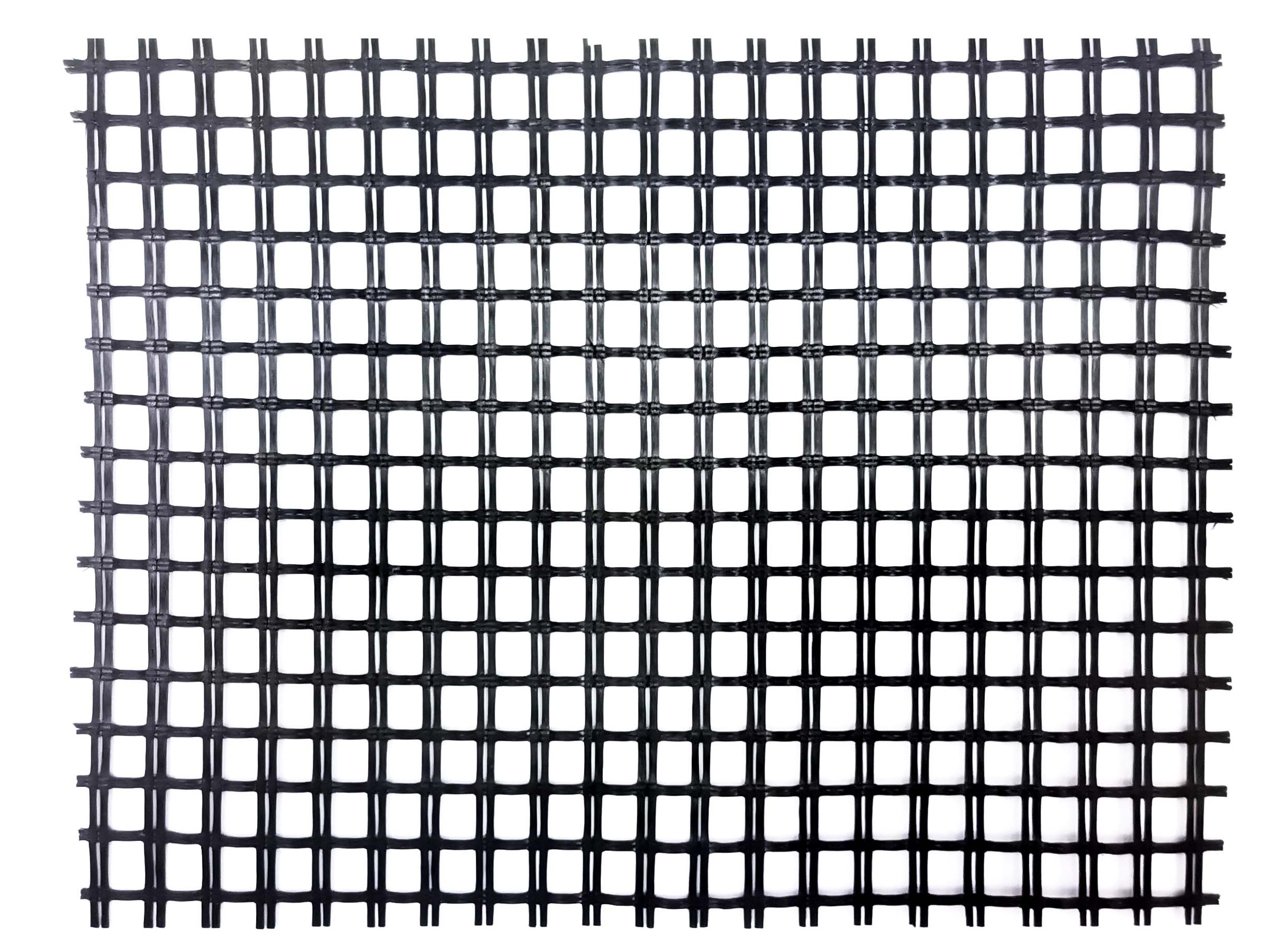

fiberglass geogrid

Taian Road fiberglass geogrid select high-quality reinforced alkali-free glass fiber yarn, use foreign advanced warp knitting machine to woven into the base material, adopt warp-knitting orientation structure, make full use of the yarn strength in the fabric, improve its mechanical properties, and make it have good tensile strength and resistance.Based on the principle of similar compatibility, it focuses on its composite performance with asphalt mixtures, and fully protects the glass fiber substrate, which greatly improves the wear resistance and shear resistance of the substrate, so that it can be used for pavement reinforcement and resistance. The occurrence of road diseases such as cracks and ruts has ended the difficult problem of asphalt pavement reinforcement.
Contact Us Check our contact information or send an email to:geogrid@taroadgeo.com
We will contact you within 24 hours, thank you very much.

Online Inquiry Whatsapp: +8613563803028

Product Content

Taian Road fiberglass geogrid is manufactured from creep resistant, high-tenacity, multifilament polyester yarns, woven through warp knitted and coated with durable polymer which provides the best resistance of UV and durability.

performance：high tensile strength;low creep deformation

Benefits: Improving bearing capacity of foundation; Improving bearing capacity of retaining wall or dam; Extending the project life;Shortening construction period, reducing cost and maintaining expense

Application: Mainly applied in highway, railway, slope protecting projects etc.

Item		EGA30-30	EGA50-50	EGA60-60	EGA80-80	EGA100-100	EGA120-120	EGA150-150
Breaking strength≥(kN/m)	Warp direction	30	50	60	80	100	120	150
Breaking strength≥(kN/m)	Across warp	30	50	60	80	100	120	150
Elongation at break≤(%)	Warp direction	4
Elongation at break≤(%)	Across warp	4
Thermal tolerance（℃）		-100~280
